15: Improving the Design

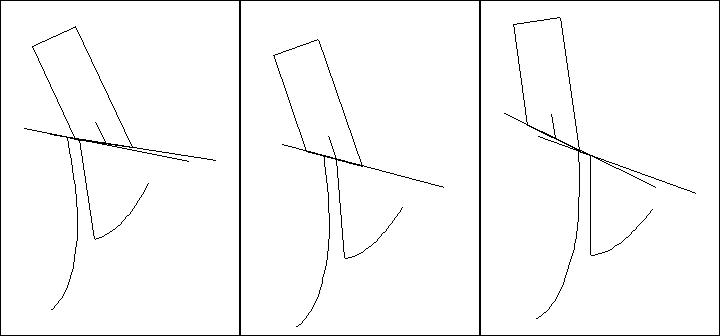

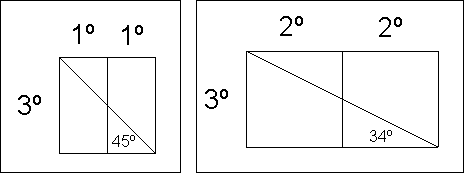

         In order to maximize efficiency, the impulse face of each pallet should have an angle half way between its corresponding escape circle radius line and pallet circle radius line. Looking at the design with equidistant impulse, if the angle between lines (2) and (4) were 90, then the impulse face's angle should be 45 and line (15) is half way between lines (2) and (4). A change in design is needed in practice because the escape wheel's teeth are too narrow and therefore too fragile. Thus far, I have assumed that the escape tooth's impulse face should be parallel to the pallet's impulse face in the drawing. However, the simulation reveals, as suspected, that the lines do not remain parallel during impulse:

This means that they need not be parallel in the design. If the pallet's impulse face remained unchanged, the efficiency of the escapement would remain unchanged, and we could change the shape of the escape tooth without sacrificing efficiency. The span of the tooth's impulse face could be increased from 2 to 4 so as to draw a wider tooth. The amount of lock would remain unchanged at 3 for the purpose of the drawing:

         If the escape tooth occupied a span of 4 and there were 2 of drop, the pallet would occupy a span of 6, for a total span of 12 per beat. New pallets must be drawn.

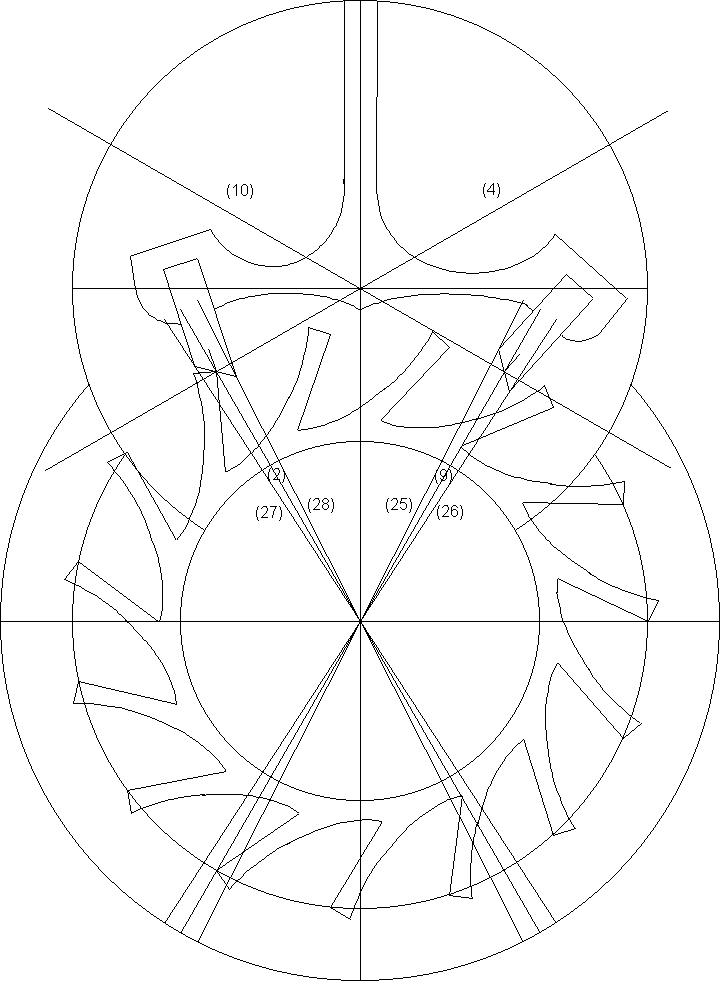

         Rotate line (9) counterclockwise by 3 to get line (25), and clockwise by 3 to get line (26). Rotate line (2) counterclockwise by 3 to get line (27), and clockwise by 3 to get line (28). Rotate line (27) clockwise by 15 and draw the locking face. Draw the rest of the pallet as before, then duplicate it and rotate it clockwise by 60, placing it on the exit side. The pallets are narrower, but the teeth are wider. Notice the difference in the angles of the pallet and escape tooth impulse faces.

         Another way to make a stronger tooth would be to trace the path of the pallet during the simulation, and then to draw the curve on the back side of the tooth again.

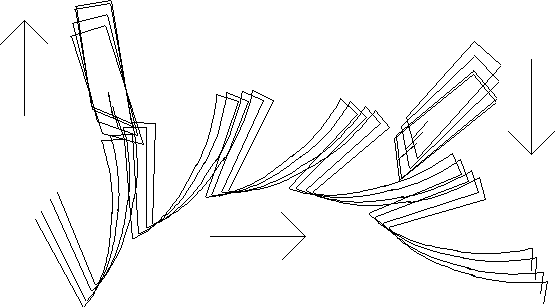

         If the simulation were superimposed for the action of the escapement as the tooth pushed on the entry pallet, the exit pallet enters the space between two teeth.

         The distance between the exit pallet and the tooth that just passed it could be measured by drawing lines from the pallet to the tooth. These lines could be used as a guide when drawing a new curve. Move the ellipse to other positions and change its shape until you trace a path for a new curve more like the path of the pallet. If you draw the lines on the tooth next to the exit pallet and are drawing the new tooth next to the entry pallet, you must rotate the lines by 24 for every tooth in between, that is, by 72 counterclockwise. I drew a new escape wheel using the same principles as in the first drawing plus these lines as a guide. Unfortunately, the path of the pallet would be very difficult to predict before doing a simulation.

         It is preferable to draw the first escape wheel with narrow teeth because it would be much more likely to work in a simulation. For the same reason, I recommend designing the first drawing with no less than 2 of lock and 2 of drop. The simulation would show the lock and drop more clearly and it would be more forgiving if errors were made. In addition, the simulation would be much more likely to work when changes in design are made, such as when going from equidistant impulse to equidistant lock. Once you have some practice, then try a design with the theoretically correct 1 of lock and 1 of drop. You would find that any error made in the drawing would result in binding or recoil.

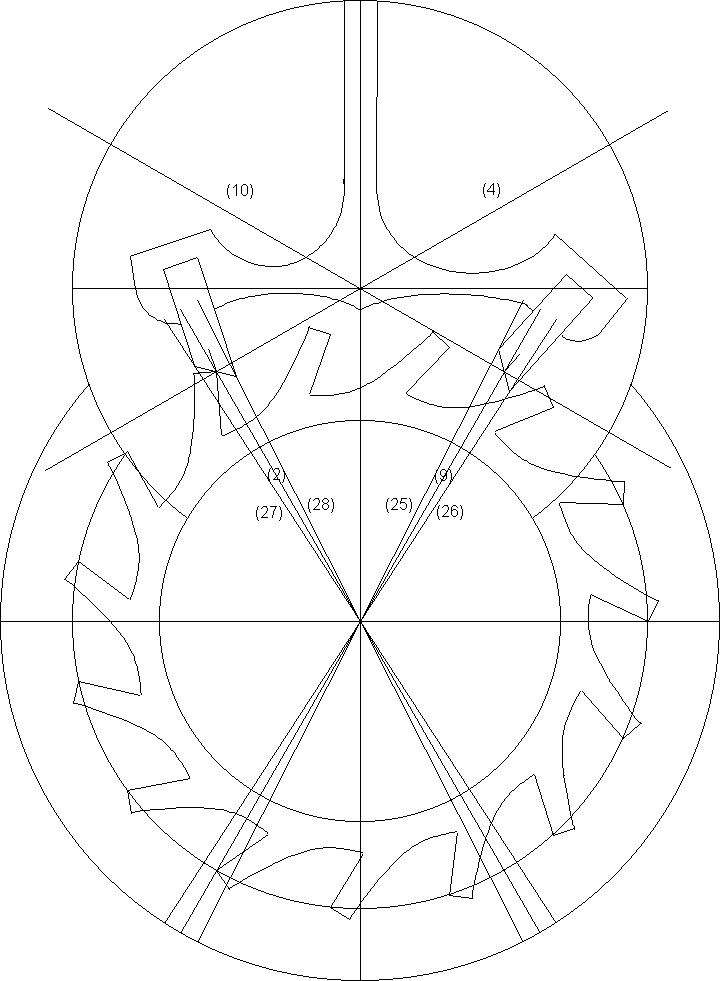

         This drawing has the same, smaller pallets and a new escape wheel:

         This drawing does not include the pallet fork and the roller table, primarily because of the math involved. These are added in Chapter 22.
